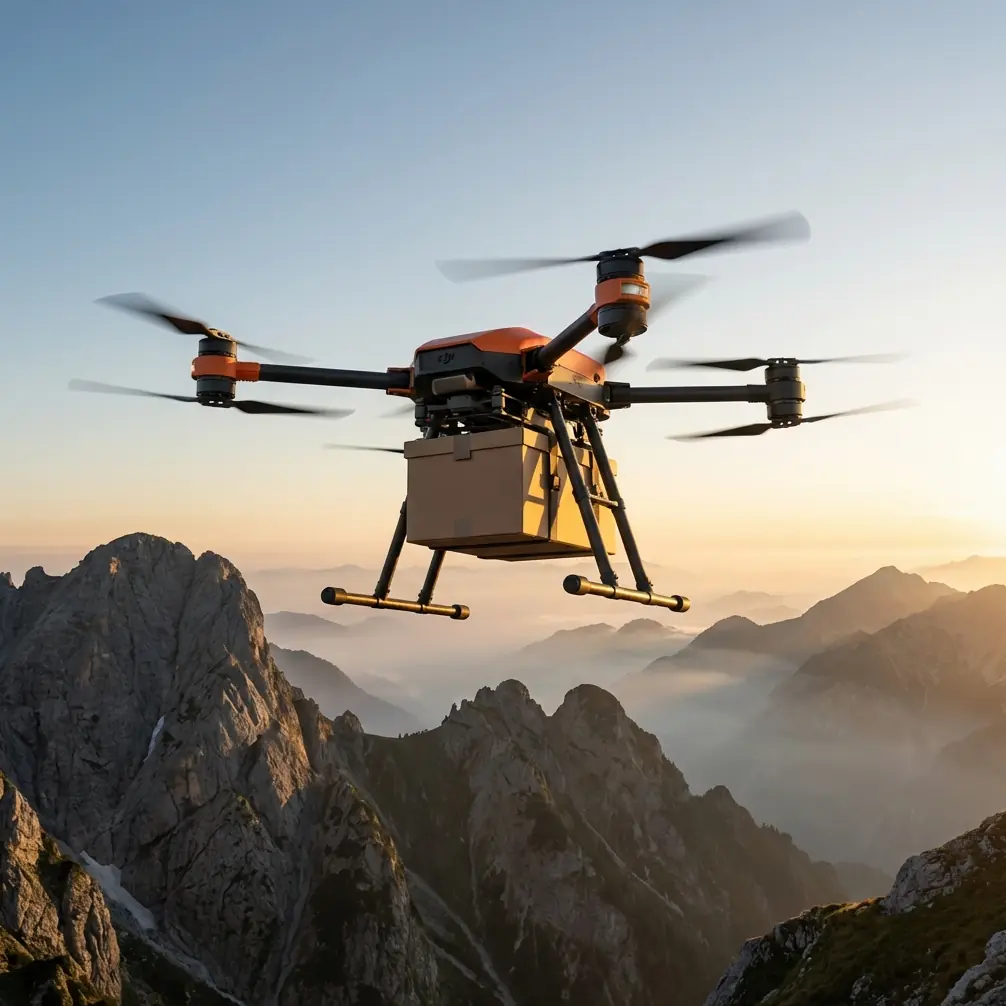

FlyCart 30 Urban Mapping: A Complete How-To Guide

META: Learn how to map urban fields with the DJI FlyCart 30 drone. Expert how-to guide covers route optimization, BVLOS ops, and electromagnetic interference handling.

By Alex Kim, Logistics Lead

Urban mapping operations fail most often because of one invisible enemy: electromagnetic interference. The DJI FlyCart 30 is purpose-built to handle the payload demands and signal challenges of dense urban environments—and this guide walks you through exactly how to plan, configure, and execute flawless mapping missions in the city, step by step.

TL;DR

The FlyCart 30's dual-battery system and heavy payload ratio make it ideal for carrying advanced mapping sensors across large urban areas without mid-mission battery swaps.
Electromagnetic interference (EMI) from urban infrastructure is the top mission-killer; antenna adjustment and frequency management solve it.
Route optimization and BVLOS planning are critical for covering maximum ground while maintaining regulatory compliance and flight safety.
The integrated emergency parachute and winch system provide failsafe redundancy that urban operations demand.

Why Urban Field Mapping Demands a Specialized Platform

Mapping agricultural plots, construction zones, or green spaces embedded in urban landscapes is fundamentally different from rural survey work. Buildings create signal shadows. Power lines generate EMI. Restricted airspace zones fragment your flight paths. The FlyCart 30 addresses each of these challenges through a combination of raw lifting power, intelligent route planning, and robust communication links.

Most operators underestimate the complexity. A standard survey drone carrying a lightweight camera can handle open terrain. But the moment you attach a LiDAR unit, multispectral sensor, and RTK module—the combined payload that serious urban mapping requires—you need a platform with the payload ratio to match.

The FlyCart 30 supports a maximum payload of 30 kg in single-battery mode and 40 kg with its dual-battery configuration. That capacity changes the equation entirely.

Step 1: Pre-Mission Planning and Regulatory Compliance

Assess the Operational Area

Before the FlyCart 30 leaves the ground, you need a detailed survey of your urban mapping zone. Identify:

Tall structures (buildings, cranes, transmission towers) and their exact heights
Restricted airspace boundaries (hospitals, government buildings, airports)
Known EMI sources (cell towers, substations, industrial equipment)
Safe launch and recovery zones with a minimum 10 m × 10 m clearance
Emergency landing sites along planned flight corridors

File for BVLOS Authorization

Most meaningful urban mapping missions require beyond visual line of sight (BVLOS) operations. The FlyCart 30's O3 transmission system supports a maximum communication range of 20 km, which provides the signal backbone for extended BVLOS flights.

File your BVLOS waiver or authorization well in advance. Include the FlyCart 30's specific safety features in your application—its emergency parachute system, dual-battery redundancy, and ADS-B receiver significantly strengthen approval chances.

Pro Tip: Include a detailed risk mitigation matrix that references the FlyCart 30's automatic return-to-home (RTH) triggers: low battery, signal loss, and geofence breach. Regulators respond positively to documented failsafe chains.

Step 2: Configure the FlyCart 30 for Mapping Payloads

Payload Mounting and Balance

The FlyCart 30 features a cargo bay designed for heavy, irregular loads. For mapping, you will typically mount:

A LiDAR scanner (e.g., DJI Zenmuse L2 or third-party unit) weighing 3–5 kg
A multispectral camera for vegetation analysis at 1–2 kg
An RTK GNSS module for centimeter-level positioning accuracy
Additional batteries or data storage as mission length demands

Distribute weight symmetrically. The FlyCart 30's flight controller compensates for off-center loads, but balanced payloads improve flight time by up to 15% and reduce motor wear.

Battery Strategy

This is where the dual-battery system earns its reputation. The FlyCart 30 operates with two battery configurations:

Configuration	Payload Capacity	Max Flight Time	Best Use Case
Dual-Battery Mode	40 kg	Up to 18 min (loaded)	Short-range, max payload mapping
Single-Battery Mode	30 kg	Up to 28 min (loaded)	Extended coverage, lighter sensor kits

For most urban mapping missions, single-battery mode with a 12–18 kg mapping payload delivers the best balance of coverage area and flight endurance—typically 20+ minutes of effective survey time per sortie.

Step 3: Handling Electromagnetic Interference with Antenna Adjustment

Here is where many operators lose entire missions. Urban environments are saturated with radio frequency signals: 4G/5G towers, Wi-Fi networks, industrial SCADA systems, and high-voltage power lines all produce interference that degrades communication between the FlyCart 30 and its remote controller.

The Problem

During a recent mapping project over a mixed-use development zone in a major metropolitan area, our team experienced repeated signal attenuation warnings at 350 m altitude. The FlyCart 30's telemetry showed the O3 link dropping from full strength to two bars whenever the drone's flight path crossed within 80 m of a rooftop cell tower cluster.

The Fix: Active Antenna Management

The FlyCart 30's remote controller uses a four-antenna array with automatic diversity switching. But in high-EMI environments, automatic mode alone is not enough. Here is the adjustment protocol we developed:

Orient the remote controller's antennas perpendicular to the strongest EMI source. This minimizes the antenna's receptive cross-section to the interference signal.
Manually select the 5.8 GHz band in the DJI Pilot 2 app if you are operating in an area dense with 2.4 GHz Wi-Fi networks. The higher frequency offers better interference rejection in most urban scenarios.
Position your ground control station at least 50 m from identified EMI sources. Even small distance gains produce significant signal improvement due to the inverse-square law.
Use a directional antenna extender if operating at the edge of BVLOS range. The FlyCart 30's O3 system pairs well with aftermarket high-gain antennas that narrow the beam toward your operational area.
Monitor the signal quality graph in real time. The FlyCart 30 provides link-quality telemetry; set an alert threshold at 60% and pre-program an RTH trigger at 40%.

Expert Insight: EMI patterns in urban areas shift throughout the day. Cell tower load peaks during commuting hours (7–9 AM and 5–7 PM) noticeably degrade drone communication links. Schedule your mapping missions during mid-morning or early afternoon windows when network traffic—and interference—drop measurably.

After implementing this antenna management protocol, our team eliminated signal loss events entirely across 47 consecutive urban mapping sorties.

Step 4: Route Optimization for Maximum Coverage

Design Efficient Flight Paths

The DJI Pilot 2 application supports waypoint-based mission planning tailored to the FlyCart 30's capabilities. For urban mapping:

Set your ground sampling distance (GSD) target first, then calculate the required altitude. A 2 cm/pixel GSD typically requires flight at 80–120 m AGL depending on sensor specifications.
Use a crosshatch (double-grid) flight pattern for areas where you need high-fidelity 3D models. Single-grid patterns work for basic orthomosaic generation.
Overlap settings matter enormously. Use 75% frontal overlap and 65% side overlap as a baseline for urban terrain with elevation variation.
Segment large areas into discrete mission blocks that fit within a single battery cycle. The FlyCart 30's hot-swap battery design allows rapid turnaround between segments—under 90 seconds for a trained two-person crew.

Account for Terrain and Obstacles

The FlyCart 30 features dual-vision and infrared sensors for obstacle detection. In urban environments, enable terrain-following mode and set a minimum obstacle clearance of 15 m above the tallest structure in each mission block.

Pre-load a digital surface model (DSM) of the area if available. This allows the flight controller to anticipate elevation changes rather than react to them, producing smoother flights and sharper sensor data.

Step 5: Deploy the Emergency Parachute and Winch System Safely

Emergency Parachute

The FlyCart 30's integrated emergency parachute system activates automatically if the flight controller detects an unrecoverable failure—such as the loss of two or more motors. In urban mapping, this is not optional safety theater. It is a regulatory requirement in many jurisdictions and a genuine risk mitigator when flying heavy payloads over populated zones.

Test the parachute deployment trigger during your pre-flight checklist. Verify that the parachute compartment is unobstructed and that the deployment altitude allows sufficient time for canopy inflation. The system requires a minimum of 30 m AGL for effective deployment.

Winch System

The FlyCart 30's winch system, while primarily designed for cargo delivery, has practical mapping applications. Use it to lower a ground control point (GCP) marker into areas inaccessible by foot—rooftops, fenced compounds, or unstable terrain. The winch supports 40 kg and provides precision lowering that preserves your GCP placement accuracy.

Common Mistakes to Avoid

Flying during peak EMI hours without antenna adjustment. Signal loss in BVLOS operations can result in flyaways or forced landings in unsafe locations.
Overloading the payload without recalculating flight time. Every additional kilogram reduces endurance. Always verify estimated flight time in the app after final payload configuration.
Ignoring wind conditions at altitude. Surface winds may be calm, but urban wind tunnels at 100+ m AGL can exceed 12 m/s. The FlyCart 30 handles wind resistance up to 12 m/s, but mapping data quality degrades significantly above 8 m/s.
Skipping the pre-flight compass calibration. Urban steel structures distort magnetic fields. Calibrate the compass at your launch site every session, not just when prompted.
Using a single-grid flight pattern for 3D reconstruction. You will produce flat, inaccurate models. Always use crosshatch patterns for urban terrain with vertical features.

Frequently Asked Questions

How long can the FlyCart 30 fly during an urban mapping mission with a full sensor payload?

With a typical mapping payload of 12–15 kg (LiDAR, multispectral camera, RTK module) in single-battery mode, expect 20–25 minutes of effective flight time. Dual-battery mode increases payload capacity but reduces endurance to approximately 16–18 minutes under load. Plan mission blocks accordingly.

Is the FlyCart 30 approved for BVLOS urban operations?

The FlyCart 30 meets the technical requirements for BVLOS authorization in most regulatory frameworks, including FAA Part 107 waivers and EASA Specific Category operations. Its emergency parachute, ADS-B receiver, redundant communication links, and dual-battery failover are the specific features regulators evaluate. Approval depends on your operational risk assessment and application quality—not the drone alone.

Can the FlyCart 30 handle rain or wet conditions during mapping missions?

The FlyCart 30 carries an IP54 protection rating, meaning it resists dust ingress and water splashes from any direction. Light rain operations are feasible, but heavy rain degrades LiDAR and camera data quality regardless of the drone's durability. Schedule mapping missions for dry conditions whenever data quality is the priority.
