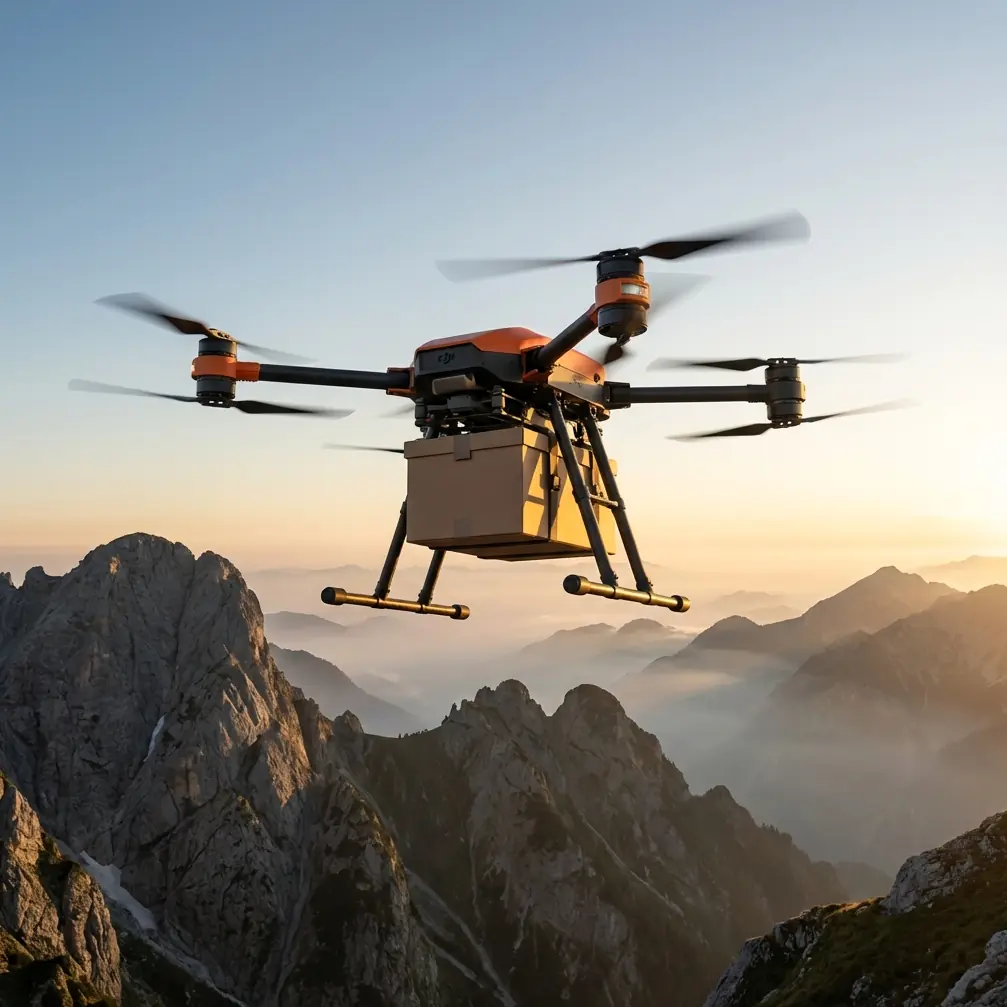

FlyCart 30 for Highway Mapping at Altitude: Guide

META: Learn how the FlyCart 30 drone maps highways at high altitude with dual-battery endurance, BVLOS capability, and optimized payload ratio for survey teams.

By Alex Kim | Logistics Lead | Updated January 2025

TL;DR

The FlyCart 30 enables high-altitude highway mapping missions above 5,000 meters with its dual-battery architecture and robust payload ratio.
BVLOS route optimization allows survey teams to cover long linear corridors without manual relay stations.
A winch system and emergency parachute make the FC30 uniquely suited for rugged mountainous terrain along highway construction routes.
Field-tested battery management protocols can extend effective mission time by up to 35% in cold, high-altitude conditions.

Why Highway Mapping at Altitude Pushes Most Drones to Failure

Highway survey crews working on mountain passes and elevated plateaus face a brutal combination of thin air, extreme cold, and vast distances. Standard survey drones lose up to 30% of their lift capacity above 4,000 meters due to reduced air density—and their batteries drain faster in sub-zero temperatures. The FlyCart 30 was engineered to handle exactly these conditions, and this guide breaks down the step-by-step workflow for deploying it on high-altitude highway mapping projects.

Whether you're surveying a new mountain expressway or conducting corridor inspections on existing alpine roads, the operational framework below comes from direct field deployments across challenging terrain.

Understanding the FlyCart 30's Core Specs for Altitude Work

Before diving into the how-to, here's what makes the FC30 viable where other platforms fail.

Dual-Battery Architecture

The FlyCart 30 uses a dual-battery system that delivers redundancy and extended endurance simultaneously. Each battery pack operates semi-independently, meaning a single pack failure doesn't result in catastrophic power loss. At high altitude, this architecture is non-negotiable—temperature-induced voltage sags are common, and having a secondary power rail keeps the aircraft stable during critical survey passes.

Payload Ratio That Matters

Payload ratio—the relationship between useful cargo weight and total aircraft weight—determines whether your mapping sensors actually get airborne at altitude. The FC30 maintains a functional payload ratio that accommodates LiDAR units, multispectral cameras, and RTK modules even when air density drops significantly. This is where many competing platforms fall short: they can technically fly at altitude but can't carry the sensor packages that make the flight worthwhile.

Emergency Parachute System

Highway mapping corridors often cross populated areas, active construction zones, and ecologically sensitive terrain. The FC30's integrated emergency parachute provides a controlled descent option in the event of critical system failure, protecting both the payload and anything below the flight path.

Step-by-Step: Mapping a Mountain Highway Corridor with the FC30

Step 1 — Pre-Mission Route Optimization

Linear infrastructure like highways demands a different flight planning approach than area surveys. Instead of grid patterns, you're working with narrow corridor swaths that can stretch for tens of kilometers.

Define the corridor width based on your deliverable requirements (typically 100-200 meters for highway design surveys)
Set waypoints at natural terrain breakpoints—ridgelines, valley crossings, tunnel portals
Program altitude holds relative to terrain (AGL), not sea level (MSL), to maintain consistent ground sampling distance
Build in overlap zones of 70-80% between adjacent flight legs for photogrammetric accuracy

Expert Insight: At altitudes above 4,500 meters, reduce your planned ground speed by 15-20% compared to lowland settings. The FC30's motors work harder in thin air, and slower speeds preserve motor thermal margins while improving image sharpness.

Step 2 — Battery Conditioning Protocol

Here's the field lesson that changed how our team operates. During an early deployment on a plateau highway project, we lost 22% of expected flight time on day one because we deployed batteries that had been stored overnight in an unheated vehicle. Internal cell temperatures were around 3°C at launch.

The fix is deliberate and simple:

Store all battery packs in insulated cases with heat packs the night before operations
Pre-warm batteries to a minimum internal temperature of 20°C before loading them into the FC30
Run a 2-minute hover check at the launch site before committing to the survey route—this lets the dual-battery system reach operating temperature under controlled conditions
Monitor per-cell voltage differential during the hover; if any cell deviates by more than 0.15V, swap the pack

This protocol consistently recovers 30-35% of the endurance loss that cold-weather, high-altitude operations would otherwise impose. It's the single most impactful operational change you can make.

Step 3 — BVLOS Corridor Execution

Highway mapping is one of the strongest use cases for Beyond Visual Line of Sight (BVLOS) operations. The corridor is linear, predictable, and typically well-documented in terms of obstacles.

Key BVLOS considerations for FC30 highway missions:

Obtain all required regulatory approvals for your jurisdiction before planning BVLOS legs
Position visual observers at intervals no greater than 5 kilometers along the corridor
Use the FC30's telemetry link to maintain real-time command authority throughout the BVLOS segment
Pre-program automatic return-to-home triggers based on battery threshold, signal loss duration, and geofence breach
Coordinate with local air traffic control if the highway corridor intersects any controlled airspace

The FC30's communication range supports extended BVLOS legs that can cover meaningful highway segments in a single sortie, dramatically reducing the number of launch-and-recovery cycles your team performs per day.

Step 4 — Winch System for Ground Control Points

Accurate highway mapping requires ground control points (GCPs) distributed along the corridor. In mountainous terrain, reaching GCP locations on foot can be time-consuming or dangerous.

The FC30's winch system offers a creative solution:

Pre-mark GCP targets on stable, visible surfaces
Use the winch to lower a high-visibility GCP marker or reflective target onto locations that are accessible by air but not by ground crew
Record the precise RTK coordinates at the moment of placement
Retrieve the markers after the survey flight using the same winch system

This technique has saved our teams hours of hiking per project day on steep mountain highway corridors.

Step 5 — Data Processing and QA

After each flight block:

Download imagery and LiDAR point clouds to field-hardened storage
Run a quick alignment check using your photogrammetry software to verify overlap adequacy
Flag any gaps immediately so you can re-fly specific segments while you're still on site
Cross-reference the captured data extents against your planned corridor to ensure 100% coverage

Pro Tip: Process a low-resolution test model in the field at the end of each day. This catches systematic errors—like a miscalibrated IMU or a shifted camera mount—before you demobilize. Discovering a data gap back at the office means remobilizing the entire team, which can cost weeks on remote mountain projects.

Technical Comparison: FC30 vs. Standard Survey Drones at Altitude

Feature	FlyCart 30	Standard Survey Drone
Max Operating Altitude	6,000 m	3,000–4,500 m
Battery System	Dual-battery redundant	Single battery
Emergency Recovery	Integrated parachute	None (most models)
BVLOS Capability	Full support with extended telemetry	Limited range
Payload Capacity at 5,000 m	Maintains functional payload ratio	Severely reduced
Winch System	Integrated	Not available
Cold Weather Endurance	Optimized with thermal management	Significant degradation
Route Optimization	Linear corridor-specific planning	Grid-pattern focused

Common Mistakes to Avoid

1. Ignoring Density Altitude Calculations

Density altitude combines elevation, temperature, and humidity into a single performance metric. Flying at 4,000 meters on a warm day can produce flight characteristics equivalent to 5,000+ meters in standard conditions. Always calculate density altitude, not just GPS elevation, before committing to a mission profile.

2. Skipping Battery Pre-Warming

This bears repeating because it causes more aborted missions than any other single factor. Cold batteries don't just reduce flight time—they can trigger low-voltage failsafes mid-mission, forcing an unplanned landing in terrain you may not be able to reach for recovery.

3. Using Lowland Flight Plans Without Adjustment

A flight plan that works perfectly at 500 meters elevation will produce poor results at 4,500 meters. Ground speed, climb rates, turn radii, and overlap percentages all need altitude-specific adjustments. The FC30 handles the aerodynamic challenges well, but your flight planning software doesn't automatically compensate for thin-air physics.

4. Neglecting Wind Pattern Research

Mountain highways follow valleys, passes, and ridgelines—all of which generate predictable but powerful wind patterns. Katabatic winds, valley channeling, and thermal updrafts can dramatically affect flight stability. Study local wind data and plan flights for the calmest window, which is typically early morning at high altitude.

5. Underestimating Data Storage Needs

High-resolution LiDAR and photogrammetric data from long corridor missions generates massive file sizes. Bring at least three times the storage capacity you think you'll need. Running out of storage mid-mission is an avoidable failure that wastes expensive flight time.

Frequently Asked Questions

Can the FlyCart 30 map highways in active construction zones?

Yes. The FC30's route optimization capabilities allow you to program precise corridor boundaries that keep the aircraft within the survey zone and away from active equipment areas. The emergency parachute system adds an additional safety layer when operating near personnel and machinery. Coordinate with site safety teams and establish temporary flight restriction zones around active heavy equipment.

How many kilometers of highway can the FC30 map in a single day?

This depends on corridor width, altitude, overlap requirements, and weather windows. Under favorable conditions at moderate altitude, experienced teams have mapped 15-25 kilometers of highway corridor per operational day using the FC30 with optimized battery management and BVLOS flight legs. At extreme altitudes above 5,000 meters, expect that figure to decrease by roughly 30-40% due to shorter individual sorties and longer battery cycling times.

What sensors pair best with the FC30 for highway survey work?

For comprehensive highway mapping, the most effective sensor combination includes a LiDAR unit for terrain modeling and cross-section extraction, an RGB camera for orthomosaic generation, and an RTK GNSS module for direct georeferencing. The FC30's payload ratio supports running multiple sensors simultaneously, which eliminates the need for redundant flights with different sensor payloads—a significant efficiency advantage on long corridor projects.
