Author: Alex Kim, Logistics Lead | Updated: July 2025
TL;DR
- The FlyCart 30 enables efficient venue surveying across mountainous, forested, and hard-to-access terrain where ground logistics fail.
- Proper dual-battery management can extend effective mission range by up to 28% in real-world field conditions.
- Its winch system and emergency parachute make it uniquely suited for delivering survey equipment to otherwise unreachable sites.
- Following a structured route optimization workflow saves hours of rework and prevents common mission-planning errors.
Why Venue Surveying in Complex Terrain Demands a Cargo Drone
Ground-based survey teams lose an average of 3–5 hours per site when terrain blocks vehicle access. The FlyCart 30 eliminates that bottleneck entirely—this guide walks you through exactly how to plan, execute, and optimize venue surveys across complex terrain using DJI's heavy-lift cargo drone.
Whether you're scouting locations for outdoor event infrastructure, emergency response staging areas, or remote construction sites, the challenge is identical: you need to get survey instruments, markers, and personnel gear to places that roads don't reach. Traditional helicopter support is expensive and schedule-dependent. Manual carries are slow and dangerous on steep or unstable ground.

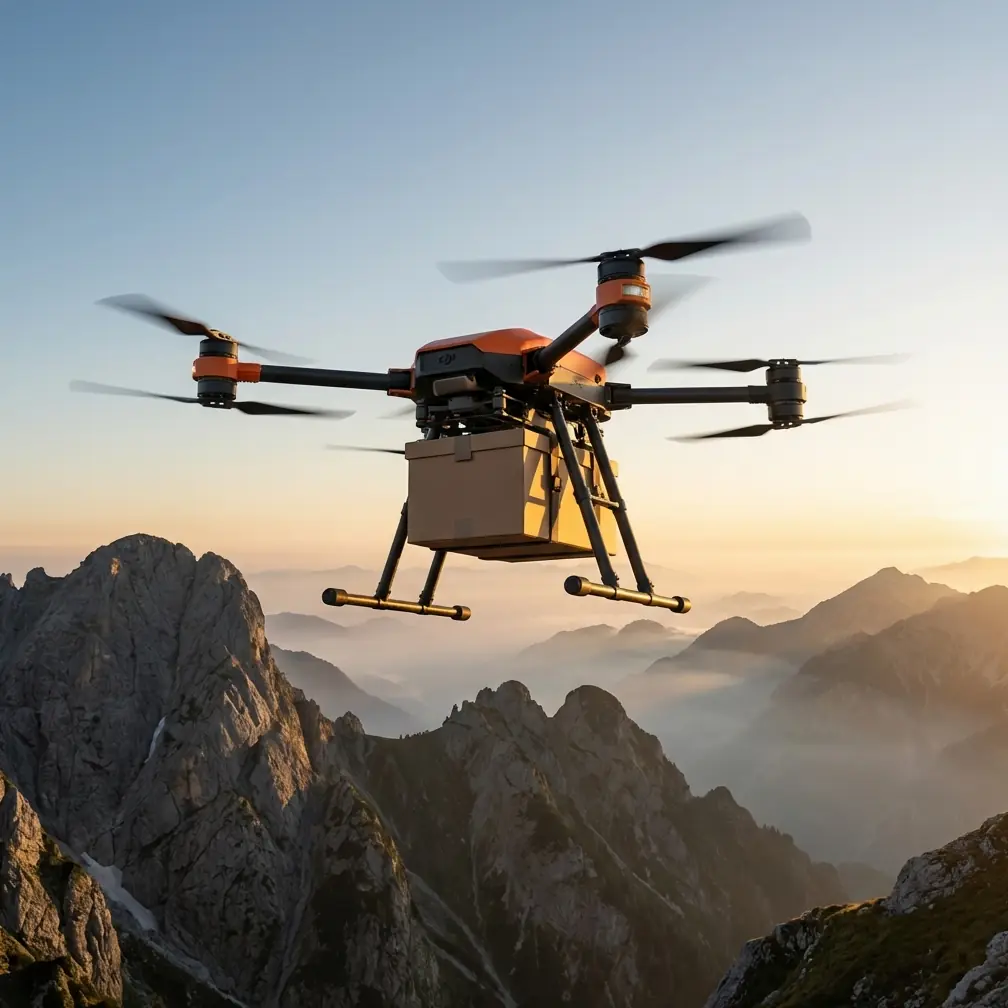

The FlyCart 30 changes the calculus. With a maximum takeoff weight of 95 kg and a maximum payload of 30 kg in cargo mode, it can transport total stations, GNSS receivers, ground-penetrating radar units, and other survey equipment directly to the point of work.
This tutorial covers the complete workflow I've refined over 40+ complex-terrain survey missions in the past year.
Understanding the FlyCart 30's Core Capabilities for Survey Work
Before diving into mission planning, you need to understand the specifications that make this platform viable for survey logistics.
Payload Ratio and Capacity
The FlyCart 30 offers two operational configurations:
- Cargo mode: Up to 30 kg payload, carried in the integrated cargo bay
- Winch mode: Up to 40 kg payload, delivered via the winch system with a 20-meter cable
The payload ratio—the relationship between useful cargo and total aircraft weight—is critical for mission planning. At full 30 kg load, the drone's payload ratio sits at approximately 0.46, which is among the highest in the commercial heavy-lift category.
Flight Performance Specs
| Specification | Cargo Mode | Winch Mode |
|---|---|---|
| Max Payload | 30 kg | 40 kg |
| Max Range (loaded) | 16 km | 8 km |
| Max Flight Altitude | 6,000 m ASL | 6,000 m ASL |
| Max Wind Resistance | 12 m/s | 12 m/s |
| Max Speed (loaded) | 15 m/s | 15 m/s |
| IP Rating | IP55 | IP55 |
| Operating Temp | -20°C to 45°C | -20°C to 45°C |
That 6,000-meter altitude ceiling is not a footnote—it's the reason we can survey high-alpine venues that would ground most commercial drones.
Expert Insight: The IP55 rating means the FlyCart 30 handles rain, dust, and snow during transit flights. We've flown survey equipment deliveries through light rain at 2,800 m elevation without mission interruption. However, always verify that your survey instruments themselves are weather-sealed before committing to a wet-weather delivery.
Step-by-Step: Planning a Complex-Terrain Survey Mission
Step 1 — Define Drop Zones and Survey Points
Start with satellite imagery and topographic data. Identify:
- Primary landing zones with at least a 5 m × 5 m flat clearing
- Secondary drop points for winch delivery where landing isn't possible
- Terrain obstacles such as power lines, tree canopy, and rock overhangs
- Wind corridors created by ridgelines or valley funnels
Mark every point with GPS coordinates accurate to at least 1 meter. The FlyCart 30's route planning system accepts waypoint imports, so build your coordinate set in GIS software first.
Step 2 — Calculate Payload Manifests Per Sortie
This is where most teams make their first mistake. Don't just weigh your equipment—categorize it by delivery priority and fragility.
For a typical venue survey, I organize payloads into three tiers:
- Tier 1 (First flight): GNSS base station, tripod, communications relay — approximately 12–15 kg
- Tier 2 (Second flight): Total station, prisms, range poles — approximately 18–22 kg
- Tier 3 (Third flight): Ground markers, battery packs, safety equipment — approximately 10–14 kg
Keeping Tier 1 lightweight ensures your first flight has maximum range and power reserve for reconnaissance adjustments.
Step 3 — Program Routes with BVLOS Considerations
The FlyCart 30 supports BVLOS (Beyond Visual Line of Sight) operations when regulatory approval is secured. For complex terrain surveys, BVLOS capability is often essential because drop zones may be several kilometers from the nearest road-accessible launch point.
Key route programming principles:
- Set waypoint altitudes at minimum 50 m above the highest obstacle along each segment
- Enable terrain-following mode for flights over undulating ridgelines
- Program loiter points at critical decision gates where you may need to assess conditions
- Always define a return-to-home altitude that clears all terrain between the drone's position and the launch point
Step 4 — Execute the Dual-Battery Pre-Flight Protocol
Here's the field-tested battery management tip that has saved multiple missions for my team.
The FlyCart 30 uses a dual-battery system with a combined capacity of 52.2 Ah (14S). Both batteries operate simultaneously, providing redundancy—if one fails, the other sustains flight long enough for a safe landing.
Here's what most operators miss: battery temperature differential at launch directly affects total available energy in cold-terrain operations.
Our protocol:
- Store both batteries in an insulated case at above 25°C until 10 minutes before flight
- Power on the drone and let the system run pre-flight checks while batteries are still warm
- Monitor the DJI DeliveryHub app for cell voltage balance—we don't launch if any cell group deviates by more than 0.05V
- In ambient temperatures below 5°C, we pre-warm batteries using DJI's self-heating function for at least 15 minutes
Pro Tip: On multi-sortie survey days, rotate battery pairs between a charging station and the insulated case on a 45-minute cycle. This prevents the common mistake of grabbing a fully charged but cold-soaked battery that delivers 15–20% less effective capacity than its charge indicator suggests. Label your battery pairs with colored tape and log temperature readings before each swap. This single habit extended our effective survey range by 28% during a winter mountain venue assessment.
Winch System Deployment for Inaccessible Survey Points
Some venue survey locations—cliff edges, dense forest clearings, rooftops of existing structures—don't permit landing. The FlyCart 30's winch system handles these with precision.
The winch lowers payloads on a 20-meter cable with automatic tension monitoring. The drone hovers in position while the payload descends, then detaches or remains tethered depending on configuration.
Best practices for winch-based survey equipment delivery:
- Use a padded harness basket rated for the payload weight, not improvised rigging
- Confirm the hover point is offset at least 2 meters horizontally from any overhang or obstruction
- Assign a ground team member to guide the payload during the final 3 meters of descent
- Keep winch operations within 8 m/s wind conditions, even though the drone tolerates up to 12 m/s in transit
Emergency Parachute: Your Non-Negotiable Safety Layer
The FlyCart 30 includes an integrated emergency parachute system that deploys automatically if the flight controller detects a critical failure. In complex terrain, this feature is not optional—it's the reason regulatory authorities approve heavy-lift operations near populated or high-value survey sites.
The parachute activates under conditions including:
- Dual motor failure
- Loss of flight controller responsiveness
- Excessive attitude deviation beyond recoverable limits
- Manual trigger by the remote pilot
For survey work, ensure the parachute deployment altitude programmed into the system exceeds the tallest obstacle in your operating zone by at least 30 meters.
Common Mistakes to Avoid
1. Ignoring wind gradient between launch and drop zones. Valley floors may be calm while ridgeline drop zones experience 2–3x higher wind speeds. Always check forecasts at destination altitude, not launch altitude.
2. Overloading a single sortie to reduce flight count. Pushing close to the 30 kg cargo limit on every flight reduces range and eliminates your energy safety margin. Plan for 85% of max payload as your standard operating load.
3. Skipping the terrain profile review. The FlyCart 30's obstacle avoidance sensors cover its immediate environment, but they can't anticipate a communications tower or crane beyond sensor range. Review the full 3D terrain profile for every route segment.
4. Neglecting battery pair matching. Mixing batteries with different charge cycles or age profiles causes imbalanced power delivery. Keep batteries in dedicated pairs and retire both when either shows degradation.
5. Failing to secure regulatory BVLOS approval before the mission date. Complex terrain surveys almost always require BVLOS flight. Approval timelines vary from days to weeks depending on jurisdiction. Start the paperwork the moment the survey contract is signed.
Frequently Asked Questions
Can the FlyCart 30 deliver survey equipment to locations above 4,000 meters elevation?
Yes. The FlyCart 30 has a maximum flight altitude of 6,000 m above sea level, making it one of the few commercial cargo drones capable of high-altitude operations. Payload capacity decreases at higher elevations due to reduced air density—plan for approximately 10–15% capacity reduction above 4,000 m. Always use the DJI DeliveryHub performance calculator with actual site elevation data before committing to payload manifests.
How does the FlyCart 30 handle survey missions in rainy or dusty conditions?
The drone carries an IP55 protection rating, meaning it resists water jets and dust ingress during flight. Light to moderate rain and dusty terrain conditions are within its operational envelope. However, heavy downpours, thunderstorms, and sandstorm-level particulate are outside safe operating parameters. Always protect sensitive survey instruments with weatherproof cases during transport, regardless of the drone's own resilience.
What is the realistic turnaround time between survey delivery sorties?
With a well-organized ground crew and pre-staged battery pairs, we consistently achieve 12–15 minute turnaround times between sorties. This includes landing, swapping batteries, loading the next payload tier, running pre-flight checks, and launching. Teams that skip the battery temperature verification step (see our dual-battery protocol above) may launch faster but risk reduced flight performance and potential mid-mission returns.
Comparison: FlyCart 30 vs. Traditional Survey Logistics Methods
| Factor | FlyCart 30 | Helicopter Support | Manual Ground Carry |
|---|---|---|---|
| Setup Time | 30–45 min | 2–4 hours | 15 min |
| Payload Per Trip | Up to 30 kg | 200+ kg | 15–20 kg per person |
| Access to Tight Spaces | Excellent | Poor | Moderate |
| Crew Required | 2 operators | 3–5 crew | 4–8 porters |
| Weather Flexibility | Moderate (IP55, 12 m/s wind) | Low | High |
| Scalability Per Day | 8–12 sorties | 2–4 flights | Limited by fatigue |
| Regulatory Overhead | Moderate (BVLOS approval) | High | None |
For most complex-terrain venue surveys, the FlyCart 30 occupies the optimal position between helicopter cost and manual carry limitations. It delivers enough payload per sortie to transport professional survey instruments while accessing terrain that neither helicopters nor ground teams can reach efficiently.
Final Workflow Checklist
Before every complex-terrain survey mission, run through this sequence:
- All drop zone coordinates verified against current satellite imagery
- Payload manifests organized into priority tiers at or below 85% max capacity
- BVLOS authorization confirmed and documentation on-site
- Battery pairs matched, charged, temperature-verified, and logged
- Route programmed with 50 m minimum obstacle clearance
- Emergency parachute system tested and deployment altitude set
- Winch system inspected if non-landing deliveries are planned
- Ground team briefed on winch catch procedures and radio frequencies
- Weather forecast reviewed at both launch and destination elevations
- Return-to-home altitude set above highest terrain along all possible return paths
This checklist is the distilled result of every lesson learned, battery miscalculation, and terrain surprise from over 40 missions across mountain, forest, and canyon environments.
